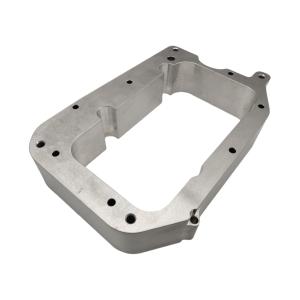

Custom CNC Machining Services With 4-Axis Processing And 0.01mm
Geometric Tolerance
Custom CNC machining services combining 4-axis processing and
0.01mm geometric tolerance deliver precision and versatility for
demanding manufacturing needs. The 4-axis capability allows the
workpiece to rotate around an additional axis, enabling multi-angle
machining of complex, asymmetrical parts in fewer setups.
This streamlined approach reduces production time and setup errors,
while the tight 0.01mm geometric tolerance ensures exceptional
accuracy across critical features like helical grooves, angled
surfaces, or undercuts. Ideal for industries such as aerospace,
medical devices, and robotics, these services balance efficiency
with precision—supporting both small-batch prototyping and
large-scale production.
By merging 4-axis flexibility with stringent tolerance control,
they provide reliable, high-quality custom parts that meet the most
exacting engineering requirements.
15+ years of experience in CNC machining:
JINGXIN has 15+ years of experience in custom CNC precision
machining services and is located in Dongguan City, China.
JINGXIN's professional team adopts reasonable manufacturing
processes, solutions, and reliable workmanship to supply
high-quality, one-stop custom CNC precision machined parts made of
stainless steel, aluminum, iron, etc.
Advantages of 4-Axis Machining in Custom CNC Services:
4-axis machining is a key advancement in custom CNC services,
boosting precision, efficiency, and versatility—especially for
tight tolerances like 0.01mm geometric tolerance. Its core strength
is rotating the workpiece around a fourth (A-) axis, enabling
multi-angle machining beyond 3-axis limits.
A major benefit is producing complex, asymmetrical parts in fewer
setups. Unlike 3-axis systems that require repositioning, 4-axis
machining handles contoured, angled, or undercut features in one
run. This cuts production time, reduces setup errors, and ensures
consistent accuracy critical for 0.01mm tolerance components.
It also enhances precision in rotational parts. By combining linear
(X, Y, Z) and rotational motion, it creates intricate features like
helical grooves with exceptional uniformity—vital for aerospace,
medical, and robotics industries.
Efficiency improves too: machining multiple features in one
operation shortens lead times, suiting small-batch prototyping and
large production. It also reduces waste from reworking, aligning
with cost-effective practices.
In summary, 4-axis machining enables complex part production with
superior precision, shorter setup times, and better
efficiency—meeting stringent 0.01mm tolerance requirements.
Quality Assurance:
What we do to ensure you get the quality parts from JINGXIN ?
We hereby declare that we will be responsible for our precision
machined parts at all times.
1.100% inspection before shipping and inspection report for each
piece of precision CNC milling parts is available.
(ISO quality control is implemented throughout the entire
production process).
2. We have served Volvo Auto Corp since 2016 as an approved
precision CNC milling company in China. with no complaints so far.
3. In case any precision machined part that is outside the
tolerance or your special specifications, we will remake and
deliver as soon as possible; 100% at our expense.
4. For past years, JINGXIN CNC milling company has manufactured
thousands of precision CNC machined components
for our customers. 99.9% satisfaction feedback drives us to supply
more quality precision machined parts to meet customer
requirements.
| Equipment | Brand | Qty | Range | Accurany |
| Projector | Tianle | 1 | 100*200*300 | 0.005MM |
| CMM | Serein | 1 | 600*800*600 | 0.001MM |
| Height Gauge | TRMOS | 2 | 800 | 0.001MM |
| microcalliper | Mitutoyo | 6 | 0~50 | 0.001MM |
| caliber rule | Mitutoyo | 20 | 0~300 | 0.01MM |
| dial gauge | Mitutoyo | 5 | | 0.001MM |
| Pin gauge | Chuan liang | 1set | 0.5~30 | 0.01MM |
| R Guage | Chuan liang | 1 | 0.5~10 | 0.1MM |
| Plane | Lu yang | 3 | 1000*1500 | 0.005MM |
| Hardness tester | Luoshi | 1 | 0~90 | |
| Surface roughness tester | Mitutoyo | 1 | | Ra0.05 |
| Coating thickness tester | Mitutoyo | 1 | | 0.002MM |
Factory & Work shop & Equipment list:
| Equipments list | Brand | Qty | Working Range (mm) | Precision |
| CNC machines | Huaqun H-1580B | 2 | 1580 | 0.005mm |
| Qiaofeng VMC-1270 | 2 | 1270 | 0.005mm |
| Qiaofeng VMC-850 -4 Axis | 12 | 850 | 0.005mm |
| Joint 850 | 10 | 850 | 0.005mm |
| (Takan) | 4 | 600 | 0.005mm |
| FEELER 5 Axis | 4 | 850 | 0.005mm |
| Milling Machine | Jie yong da | 10 | 760x330 | 0.01mm |
| Milling Machine | Bao Feng | 1 | 760x330 | 0.01mm |
| Lathe | Dalian | 2 | 600 | 0.01mm |
| N/C Turning | Tai Yu | 6 | 500x300 | 0.005mm |
| W/C | Xiongfeng | 6 | 500x300 | 0.005mm |
| W/C(Mid) | Xiongfeng | 1 | 500x300 | 0.005mm |
| Grinding Machine | Wanbang | 4 | 400x200 | 0.002mm |
| Laser Marking machine | | 1 | | |
We work with raw materials.
| Plastic | Metal | Grade |
| ABS | Aluminum Alloy | 2007/ 2017/5052 /6061/6082/6063/7075 ,.etc. |
| PC (Polycarbonate) | Brass&Copper | 3602 / H59 / H62 / C3600/C38500/,.etc. |
| PEEK | Stainless steel | SS 301,SS304,SS316L,SS400,SS430,etc |
| POM | Carbon Steel | A2,Q235,20#,45#.etc |
| PMMA (Acrylic) | Titanium Alloy | |
| PE | Magnesium alloy | |
| PVC | Zinc alloy | |
| Teflon | Tungsten Carbide | YG8,YG10 |
| Other special plastic | Other | Up on Customer’s request |
Fast lead time and safe shipping:
1-2 weeks
Wooden case safe packing, Ship by air or sea.
